Basic Info.
Model NO.
ringlock
Erection Position
Internal Scaffolding
Move Method
Attached Lifting Scaffolding
Scaffolding Part Type
System
Certificate
CE, TUV, SGS
Transport Package
Package/ Steel Pallets
Specification
OD48.3 X 3.2mm
Trademark
METEC
Origin
Wuxi, China
HS Code
73084000
Production Capacity
80 Containers/ Month
Product Description

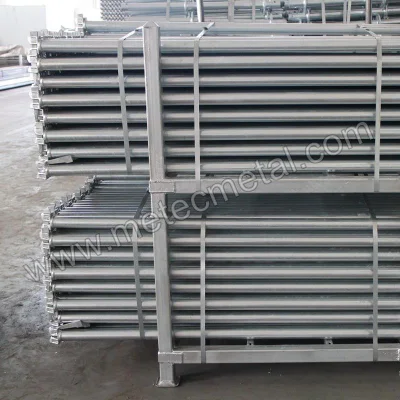

Ledgers are the horizontal members of ringlock scaffolding, they provide horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hnd guard rails
Material: Q235, Q345
Finished: HDG, Painted
Tube size: 48.3mm with 3.2mm thickness
METEC is a well-established scaffolding factory with over 20 years of experience in the industry. We provide a full set of scaffolding accessories, ensuring that our clients have everything they need for their projects. At METEC, we understand the importance of reliable scaffolding for the success of your project. So we prioritize quality and safety, which is why our products come with TUV and SGS certification. Our commitment to excellence has made us a trusted partner for construction companies and contractors worldwide.

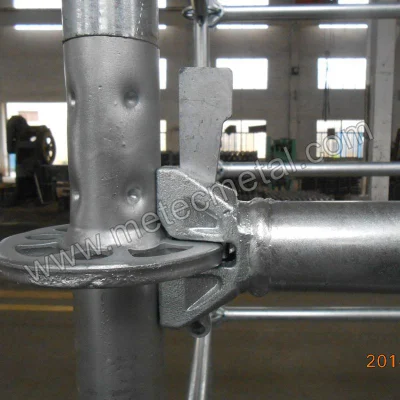

Ringlock scaffolding is a multi-purpose modular scaffold system that can be used for all forms of access and support structures in the building and construction industries, shipbuilding, off-shore construction, and industrial maintenance. And METEC Scaffolding consists of galvanized high strength steel modular components that are assembled together using integral wedge connectors. We can also supply a complete range of accessories, including steel planks, side brackets, system toe boards, stairs, ladders, and reinforced ledgers.
Material: Q235, Q345
Finished: HDG, Painted
Tube size: 48.3mm with 3.2mm thickness
METEC is a well-established scaffolding factory with over 20 years of experience in the industry. We provide a full set of scaffolding accessories, ensuring that our clients have everything they need for their projects. At METEC, we understand the importance of reliable scaffolding for the success of your project. So we prioritize quality and safety, which is why our products come with TUV and SGS certification. Our commitment to excellence has made us a trusted partner for construction companies and contractors worldwide.
Ringlock scaffolding is a multi-purpose modular scaffold system that can be used for all forms of access and support structures in the building and construction industries, shipbuilding, off-shore construction, and industrial maintenance. And METEC Scaffolding consists of galvanized high strength steel modular components that are assembled together using integral wedge connectors. We can also supply a complete range of accessories, including steel planks, side brackets, system toe boards, stairs, ladders, and reinforced ledgers.
| Item No. | Length (mm) | Weight (kg) |
| RH20 | 610 | 3.14 |
| RH22 | 650 | 3.30 |
| RH24 | 732 | 3.61 |
| RH211 | 880 | 4.18 |
| RH30 | 915 | 4.32 |
| RH33 | 990 | 4.61 |
| RH36 | 1088 | 4.98 |
| RH39 | 1150 | 5.22 |
| RH40 | 1220 | 5.49 |
| RH43 | 1286 | 5.75 |
| RH410 | 1484 | 6.51 |
| RH50 | 1572 | 6.85 |
| RH69 | 2072 | 8.77 |
| RH70 | 2130 | 9.00 |
| RH80 | 2440 | 10.19 |
| RH86 | 2572 | 10.70 |
| RH100 | 3051 | 12.54 |
| RH10 | 3070 | 12.62 |
| RBHD8080 | 3450 | 14.08 |
